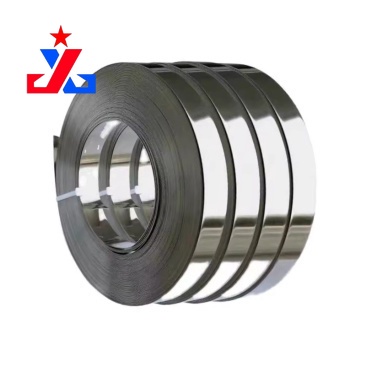

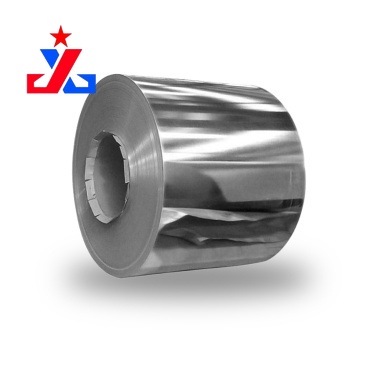

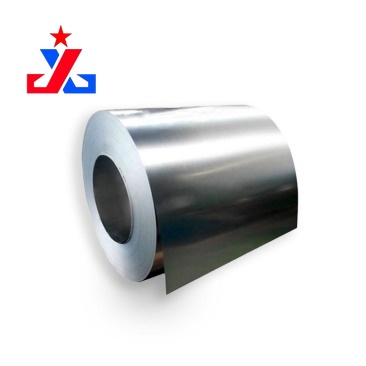

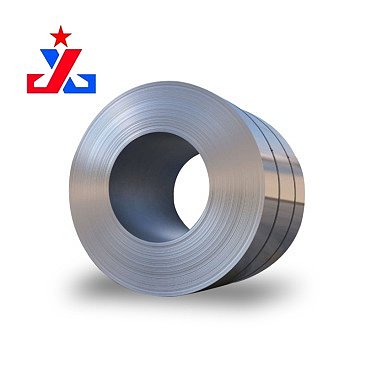

Cold Rolled Ordinary Oriented Silicon Steel

Name: Cold Rolled Ordinary Oriented Silicon Steel
SKU: 0

Oriented silicon steel, also known as cold-rolled transformer steel, is an important ferrosilicon alloy used in transformer (core) manufacturing industry. The most widely used oriented silicon steel is supplied in the form of a coil, and its surface is coated with an insulating layer to generate tensile stress in the base steel strip, thus further reducing the iron loss value.

Phone ：+8618263560121

WhatsApp : +8618263560121

Email : Rita@sdxjsteel.com

Product Details

Product Parameters

Category			Silicon Content/%	Nominal Thickness/Mm	Lord To Use Way
Hot Rolled Silicon Steel(No Orientation)	Hot rolled low silicon steel(Motor Steel)		1.0~2.5	0.5	Household motors and micromotors
	Hot rolled high silicon steel(Transformer steel)		3.0~4.5	0.35,0.50	Transformer
Cold Rolled Electrical Steel	Cold rolled non-oriented electrical steel(Motor Steel)	Low carbon electrical steel	≤ 0.5	0.50,0.65	Small transformers and ballasts for household motors, micromotors
		Silicon steel	>0.5~3.5	0.35,0.50	Medium and large motors, generators and transformers
	Cold rolled grain oriented silicon steel(Transformer steel)	Ordinary oriented silicon steel	2.9~3.3	0.18,0.23,0.27 0.30,0.35	Large, medium and small transformers and ballasts
		High magnetic induction oriented silicon steel
Special Purpose Silicon Steel	Cold rolled grain oriented silicon steel strip		2.9~3.3	0.03,0.05,0.10	Pulse transformer, magnetic amplifier, high frequency transformer and electric welding machine
	Cold rolled non-oriented silicon steel strip		3.0	0.15,0.20	High-frequency motors and generators
	Cold rolled non-oriented silicon steel for magnetic switch		3.0	0.70	Relays and magnetic switches
	Cold rolled high silicon steel		6.5	0.1~0.5	High-frequency motors, transformers and magnetic shielding

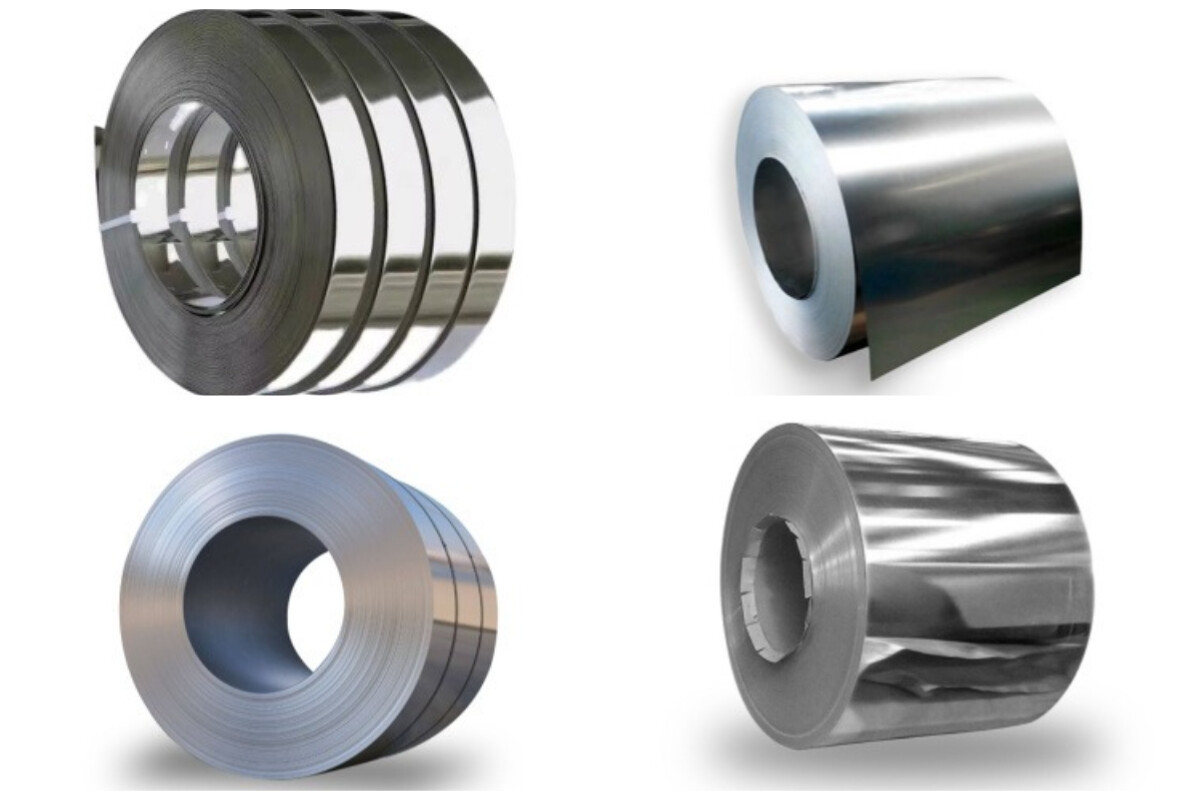

Product Display

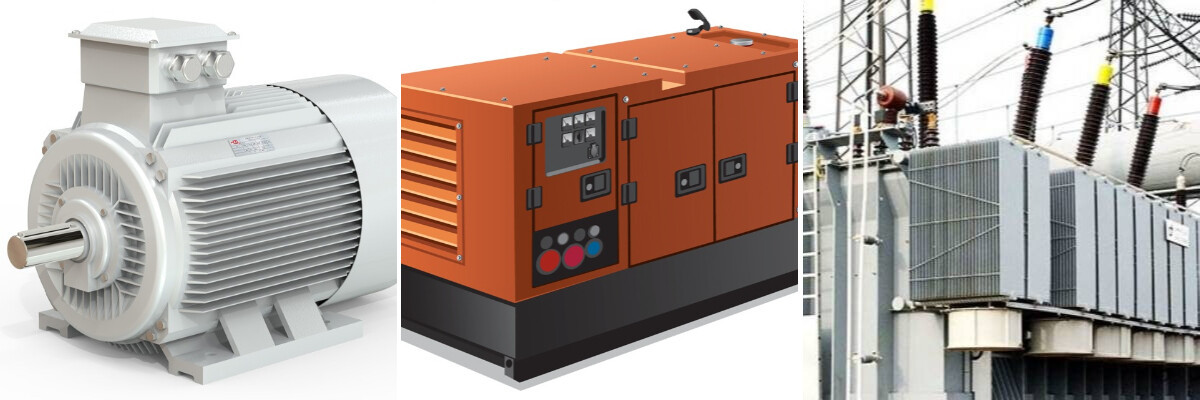

Product Application

Product Packaging

Factory Display

FAQ

01 — What steel products do you supply?

We supply a wide range of steel products, including steel coils, steel sheets and plates, steel pipes and tubes, steel bars, steel profiles and other steel materials for industrial and commercial applications.

02 — Can you provide customized steel specifications?

Yes. We can supply products according to your required steel grade, thickness, width, length, surface finish and other technical specifications, subject to product availability and order requirements.

03 — What steel grades are available?

We supply different steel grades according to product type and customer requirements. Common standards may include ASTM, EN, JIS, DIN and GB.

Please contact our team with your required grade or application, and we can help identify a suitable option.

04 — Can you provide products according to international standards?

Yes. Products can be supplied according to applicable international standards and technical specifications, depending on the product and customer requirements.
